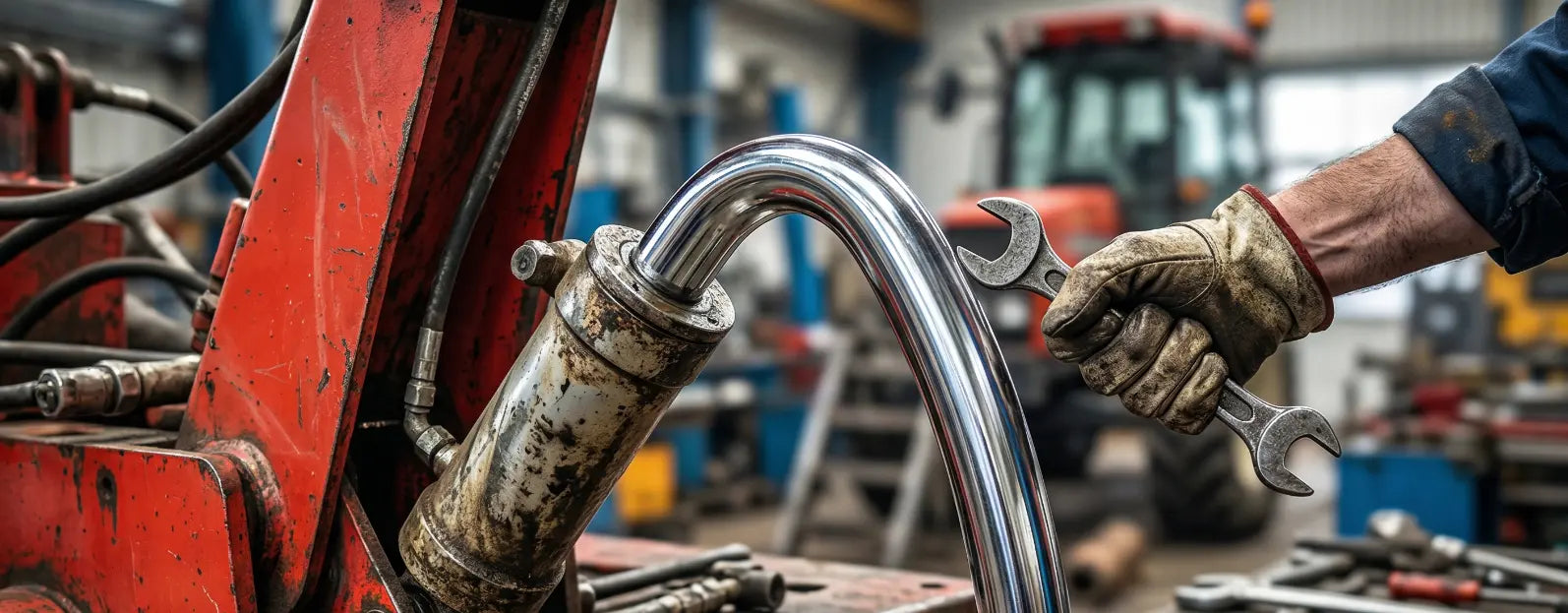

You're building a powerful log splitter, a workshop press, or upgrading a loader arm. You buy a massive hydraulic cylinder that, according to the specs, has a 10-ton pushing force. You fire up the pump, the cylinder extends, encounters a tough knot in the wood, and suddenly... the 40mm thick chromed rod (piston rod) bends into an arc like a soft banana.
You call the seller complaining that the steel was "play-doh-like," but the complaint is rejected. Why did the powerful cylinder fail on its first heavy job?
BRhydraulic experts explain the phenomenon of buckling, reveal why cylinders hate side forces, and show how to properly mount a cylinder so it lasts for years.
1. Invisible Enemy: Side (Radial) Forces
The biggest myth in hydraulics is the belief that a hydraulic cylinder is a load-bearing (structural) element.
A cylinder is designed exclusively for straight-line operation (pushing and pulling along its axis). The chrome-plated piston rod is incredibly resistant to compression and tension, but it is extremely sensitive to bending sideways.
If your machine arm (e.g., in an excavator or loader) has play in the pins, is welded crooked, or the load pushes at a slight angle, you generate so-called side forces. The piston rod then starts acting like a crowbar stuck in the cylinder tube. At best, you'll destroy the front gland seals, and the cylinder will start to leak. At worst, the rod will bend permanently.
2. Rigid Mounting vs. Spherical Bearings
Another classic mistake when building machinery is mounting the cylinder "rigidly" using simple holes drilled in metal (or welding it permanently into the frame).
During operation under heavy load, even the most powerful steel machine frame will minimally "work" (bend and strain). If the cylinder is rigidly mounted, these stresses from the frame are transferred directly to the piston rod.
-
Solution: Always choose cylinders equipped with eyes with spherical (swivel) bearings. This is a steel "ball" in the cylinder eye that allows it to deflect slightly sideways (usually by a few degrees) during extension. This allows the bearing to absorb micro-deformations of the machine frame, and the cylinder rod always remains perfectly aligned, protecting it from breaking.
3. Buckling Phenomenon (Too Long and Thin Stroke)
From the laws of physics (Euler's formula), a simple rule follows: the longer and thinner a pushed element is, the easier it is to break.
If you are building a machine with a very long stroke (e.g., the cylinder must extend 1000 mm), you cannot buy a model with a thin piston rod (e.g., 25 mm or 30 mm thick), even if the theoretical pushing force of the piston (resulting from pressure) is sufficient. At maximum extension, a thin rod will lose stiffness and simply "buckle" under its own pressure, seeking an outlet for the energy.
-
Golden rule: For long strokes (over 500 mm) and heavy-duty pushing applications (e.g., presses, log splitters, dump trucks), always select cylinders with a thickened piston rod (e.g., 40 mm, 50 mm, or more). Such an extra thickness of steel guarantees geometric stability in the extreme position.
Summary
A bent piston rod is not a material defect; it's a sign that the machine requires structural improvement. Remember: the cylinder is only meant to push and pull, and the load guidance must be handled by a properly bearing-mounted machine frame! If you are building or repairing your equipment and are unsure which cylinder will withstand the planned loads – consult the experts at BRhydraulic. We will help you choose a cylinder with appropriate spherical bearings and rod thickness that will never let you down!
